ZJB-muuntajaöljyn suodatuslaitos voi poistaa kaasut, vedenpoiston ja poistaa loukkaavan öljyn epäpuhtaudet nopeasti ja tehokkaasti. Se parantaa jänniteventtiilin arvoa ja varmistaa, että sähkölaitteet toimivat turvallisesti. Voimalaitos ja kaivos käyttävät konetta pääasiassa muuntajaöljyn keskinäisen induktoriöljyn, kytkinöljyn ja niin edelleen käsittelemiseen.
Koneparametri:
|
KOHDE |
UNIT |
ZJB-10 |
ZJB -20 |
ZJB -30 |
ZJB -50 |
ZJB -75 |
ZJB -100 |
ZJB -150 |
ZJB -200 |
ZJB -300 |
|||||||||||
|
Virtausnopeus |
L/H |
600 |
1,200 |
1,800 |
3,000 |
4,500 |
6,000 |
9,000 |
12,000 |
18,000 |
|||||||||||
|
Tyhjiöalue |
MPa |
-0.065----0.098 |
|||||||||||||||||||
|
Työpaine |
MPa |
<> |
|||||||||||||||||||
|
Lämpötila-alue |
C |
45-80 |
|||||||||||||||||||
|
Virtalähde |
V |
-20Hz 380V (tai tarpeen mukaan) |
|||||||||||||||||||
|
Toimiva melu |
dB |
<> |
|||||||||||||||||||
|
Vesipitoisuus |
PPm |
<=5 after=""> |
|||||||||||||||||||
|
Kaasusisältö |
prosenttia |
<=0.1 after=""> |
|||||||||||||||||||
|
Epäpuhtauksien koko |
um |
<=5 after=""> |
|||||||||||||||||||
|
Läpilyöntijännite |
Kv |
65KV käsittelyn jälkeen |
|||||||||||||||||||
|
Lämmitysteho |
Kw |
9 |
15 |
18 |
30 |
50 |
60 |
80 |
100 |
220 |
|||||||||||
|
Kokonaisteho |
Kw |
11 |
17 |
21 |
33 |
54 |
65 |
102 |
125 |
250 |
|||||||||||
|
Sisääntulo tai ulostulo |
Mm |
DN25 |
DN25 |
DN25 |
DN32 |
DN42 |
DN42 |
DN50 |
DN60 |
DN60 |
|||||||||||
|
Nettopaino |
Kg |
240 |
260 |
280 |
310 |
850 |
730 |
1150 |
1350 |
1800 |
|||||||||||
|
Koko (riippuu tavarasta) |
L |
1500 |
1050 |
1150 |
1200 |
1300 |
1700 |
1600 |
1600 |
2000 |
2200 |
||||||||||
|
W |
1100 |
750 |
800 |
800 |
900 |
1150 |
1200 |
2200 |
1500 |
1500 |
|||||||||||
|
H |
1750 |
1400 |
1450 |
1500 |
1600 |
1800 |
1850 |
2000 |
2200 |
2400 |
|||||||||||
Ominaisuus:
◆To remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly.
◆Enhance the value of breakdown voltage greatly..
◆Easy handling and maintenance.
◆Online work
◆Lower maintenance and replacement expenses.
◆High efficiency and effectiveness.
◆Small size, light weight, low noise
◆Various sizes and configurations (shield) available.
◆Low maintenance and replacement expenses.
◆Low operation cost.
◆High regeneration rate.
◆Automatic reverse-washing system will extend the lifetime of filters and improve the performance of the filters.
◆High performance security system including pressure protection device and automatic temperature controller makes purifier operate safely.
◆Small size, light weight, low noise.
◆The oil purifier use special duplex space solid flash evaporation, can remove the water content and gas rapidly, this system need no maintain.
◆Trash extraction technology composed by reticulation filtration and high macular adsorption, use excellent quality filter, can contain a large amount of waste, encrypt progressive, high precision, more than one degrade purifier.
◆Double infrared ray liquid control automatically, control inlet and outlet the oil smoothly, to achieve man separate with machine really.
◆The oil recycling can be used absolutely and also can used with oil regeneration system, it can deacidification, decoloring, reduce the device, PH value, then enhance the insulation value of oil.
◆This machine can be used in vacuum oiling and vacuum dryness of insulation electrical device.
◆This machine has the ability of vacuum oiling and can electrification operate every degrade of transformer oil.
◆There is trinity interlock and protection device (phase protection, thrashing protection, Over pressure protection)

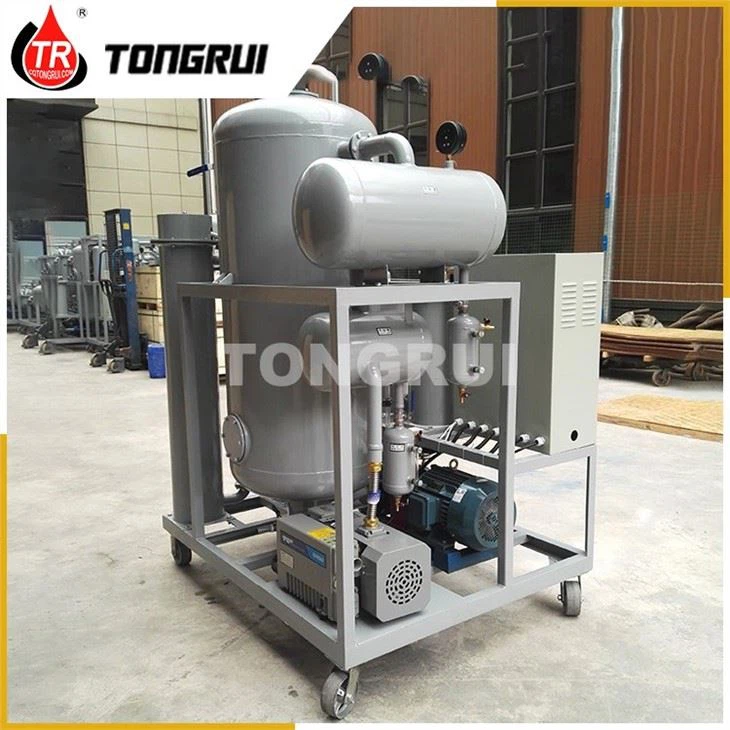

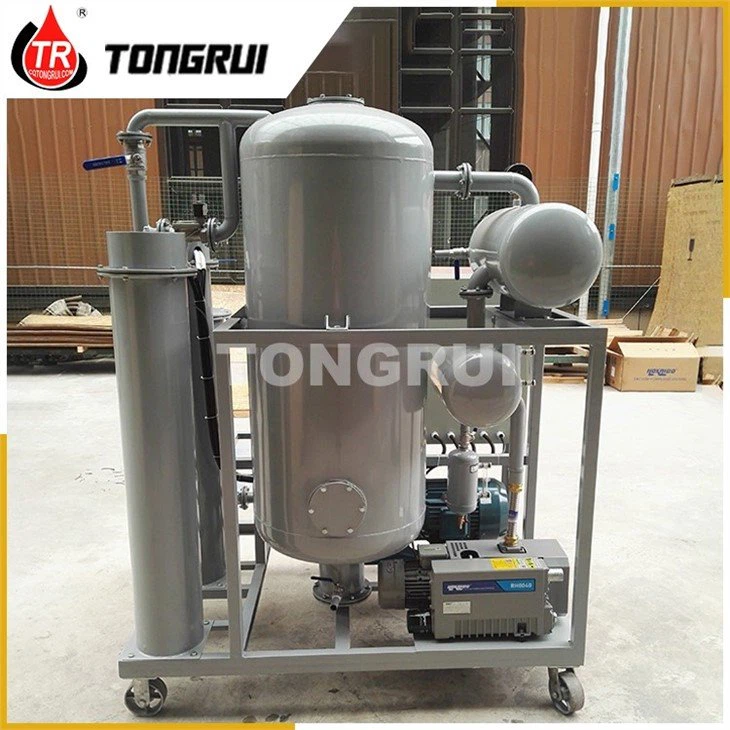

Muuntajaöljyn suodatuslaitoksen kuvat:
